2000-3000-5000 kN – 4 columns

0,00

Automatic testing machine for compression tests on Cubes & Cylinders

Caracteristics:

  • Class 1
  • High rigidity frame, controlled by footmeter
  • Designed accordingly to the European testing machines standards
  • Hardened steel platens ø 300 mm or 510 x 310 mm – Hardness > 58 HRC
  • Vertical clearance : 340 mm – 170 mm with wedges
  • Protection screen doors with an automatic security sensor
  • Openwork legs designed for easy handling with forklift truck

Category:

Description

2000-3000-5000 kN – 4 columns


Automatic testing machine for compression tests on Cubes & Cylinders

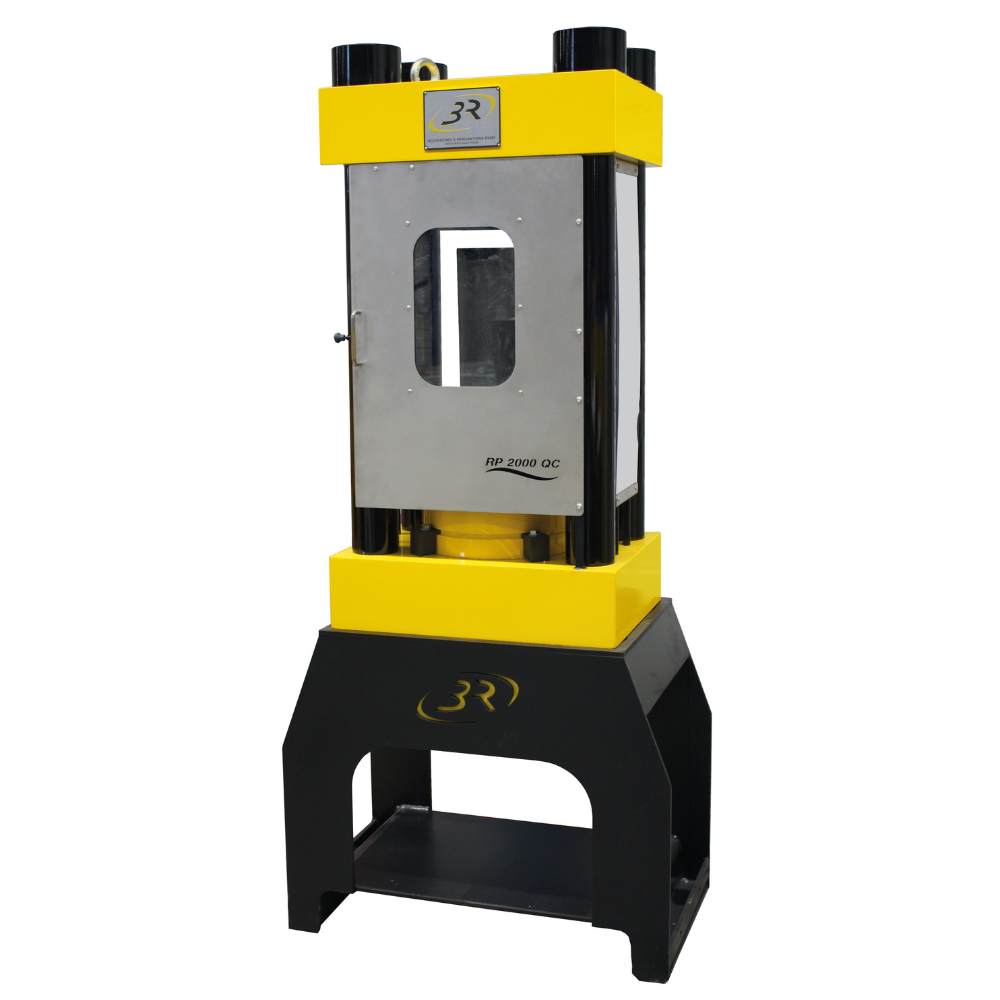

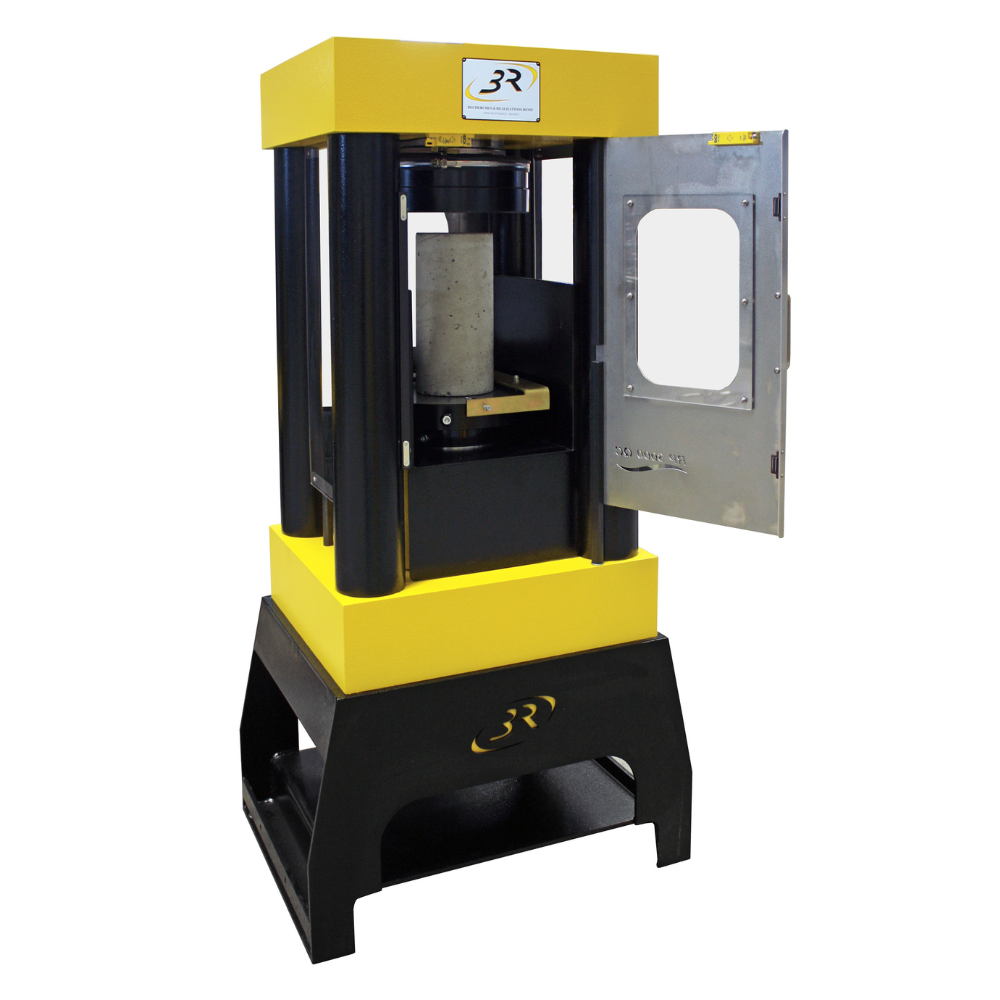

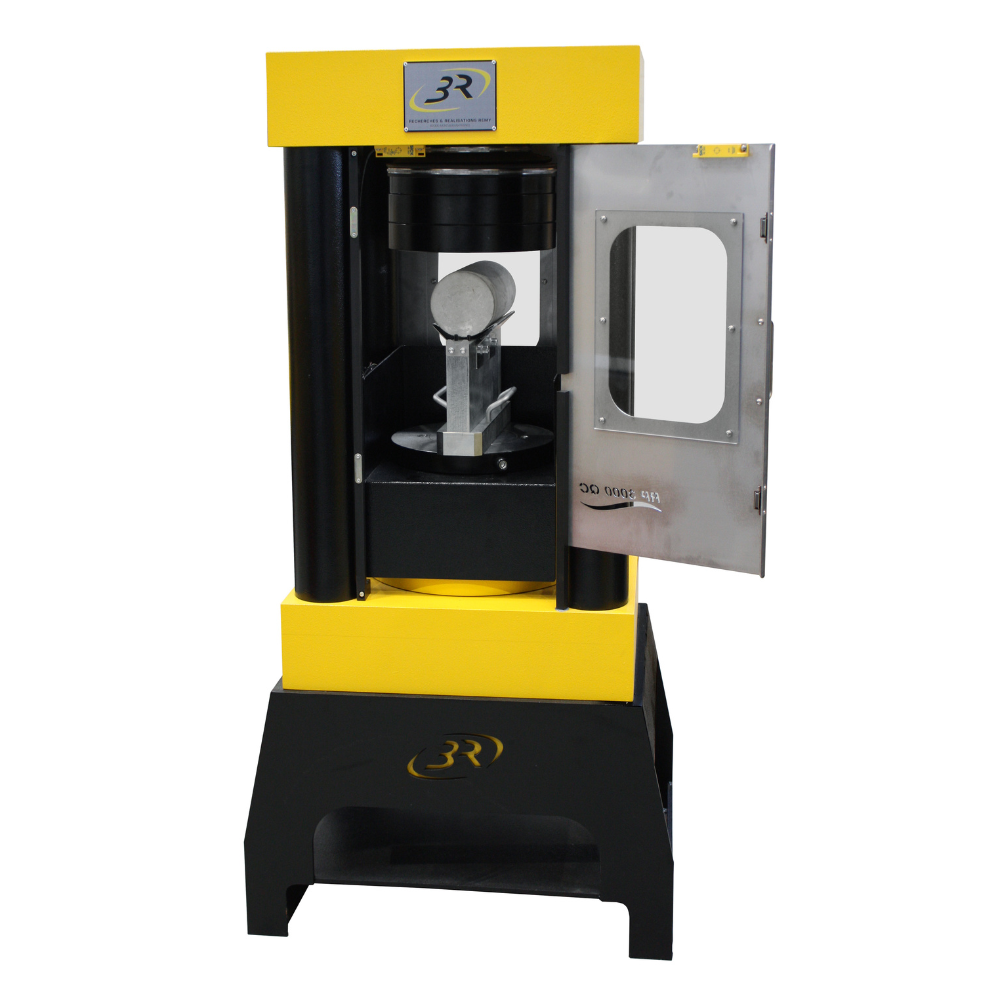

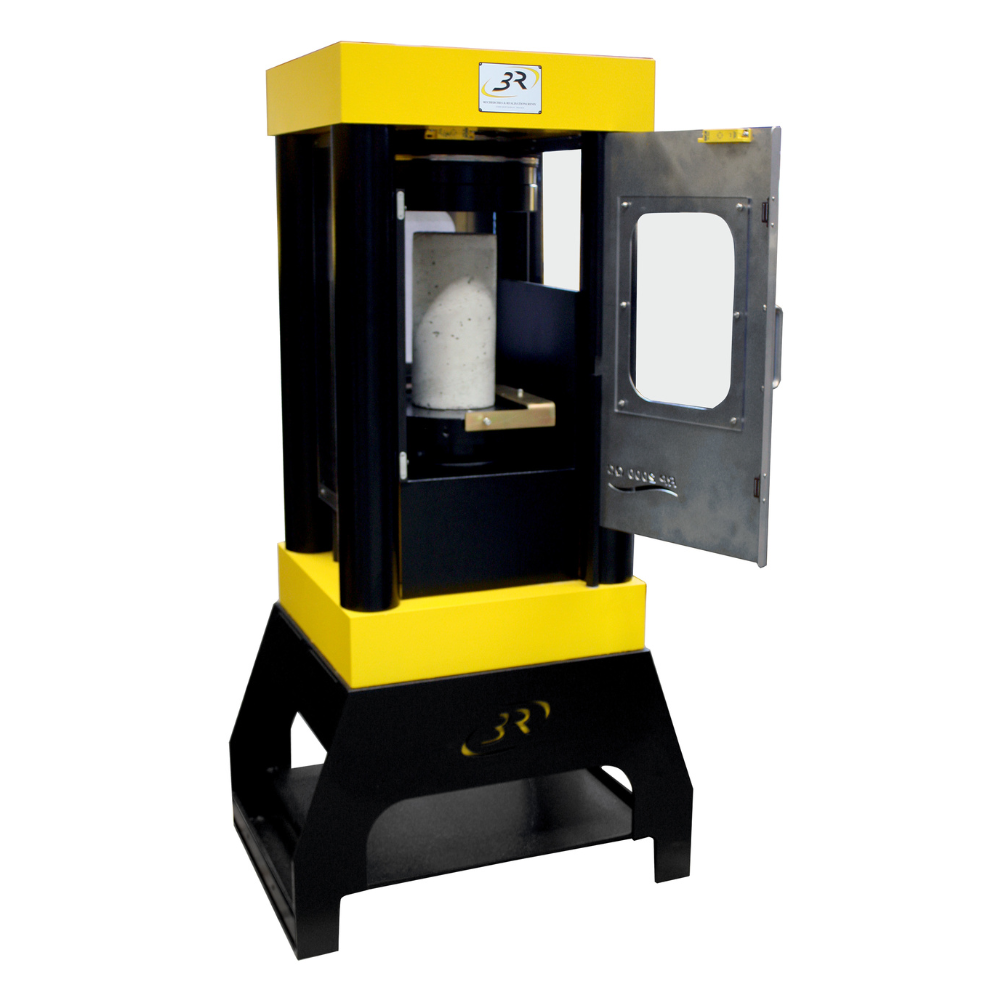

The QC frame (with Four Columns) is a higly resistant frame compression , designed to realise tests on cubes and cylindrers samples.

 Norme : EN 12390-4









Fully tooled frame which guarantees a perfect alignment of the load center, its widely sized 4 column structure offers a low distortion while loaded. This is the guarantee of a long-lasting frame. Ergonomics is also carefully studied, with a 1.05 mm working height and openwork legs for easy and safe handling.





Caracteristics:

  • Class 1
  • High rigidity frame, controlled by footmeter
  • Designed accordingly to the European testing machines standards
  • Hardened steel platens ø 300 mm or 510 x 310 mm – Hardness > 58 HRC
  • Vertical clearance : 340 mm – 170 mm with wedges
  • Protection screen doors with an automatic security sensor
  • Openwork legs designed for easy handling with forklift truck







Download the brochure (Fr)
